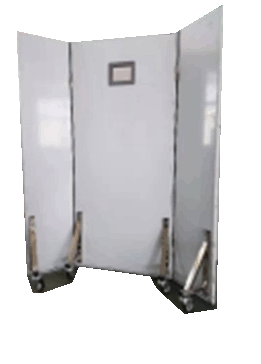

X-ray Protective Mobile Screen

Dimensions:

• Main Screen: 1800mm (H) × 840mm (W)

• Side Wings: 380mm (W) for each of the 2 side wings

Mobility & Casters:
Equipped with a total of 6 high-end silent casters for flexible and convenient movement. The bottom of the main screen features 2 wheels in the front and 2 locking wheels in the back. Each side wing is equipped with 1  wheel at the bottom.

Material & Construction:
The overall frame and panels utilize brushed stainless steel, offering a simple, elegant, sturdy, and durable design. The interior of the stainless steel panels is lined with a lead plate providing a lead equivalent of  0.5  mm Pb for superior protection.

Protective Window:
Features a ：120 x 170 mm viewing window made of high-lead glass with the same lead equivalent. The lead glass is clear with no yellow shadows, spots, bubbles, sand holes, or impurities, ensuring high light transmittance. The window frame is crafted from premium 304 stainless steel.

Additional Features:
A  0.5  mm Pb lead curtain is installed in the gaps between the main screen and the side wings to ensure seamless radiation protection.
